Semiconductor Wafer Handling Tweezers – Precision Paddle Tip

Handle semiconductor wafers, dies and delicate substrates with controlled contact using TWEEZER WORLD® Semiconductor Wafer Handling Tweezers.

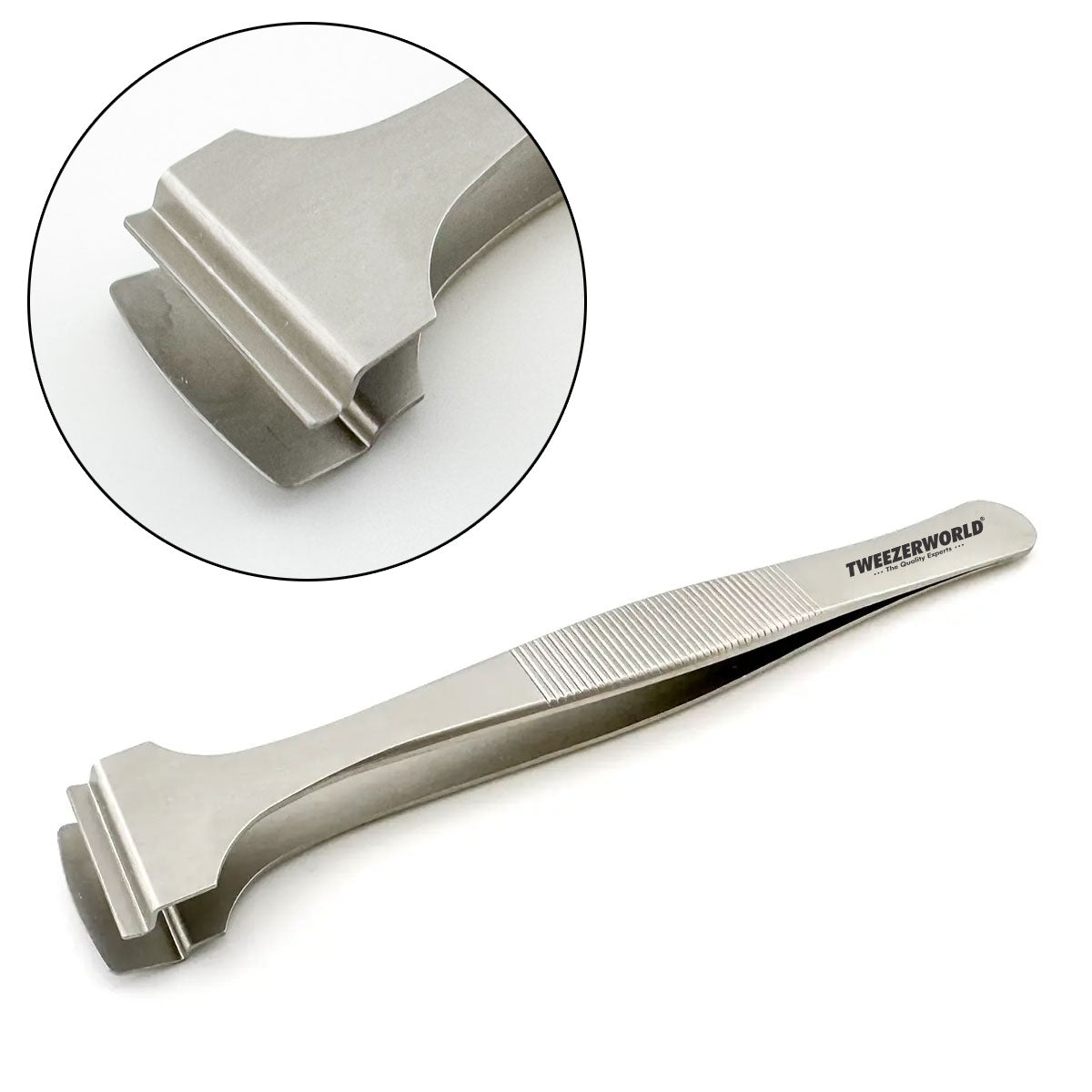

The flat paddle-style working end provides a broader supporting contact area than an ultra-fine point. This geometry can help distribute pressure across an approved wafer-edge or substrate-contact zone. Every model should be selected according to the wafer diameter, thickness, permitted contact area and working environment.

Suitable for evaluation by semiconductor laboratories, electronics manufacturers, research facilities, technical distributors and microelectronics assembly teams.

Product Features

• Precision paddle-tip geometry for controlled wafer or substrate support
• Smooth working surfaces inspected for alignment and finish
• Balanced spring action for controlled opening and closing
• Available in straight, angled and application-specific configurations
• Suitable for manual positioning, inspection, transfer and laboratory handling
• Individual model specifications available for technical evaluation
• OEM branding, model identification and custom packaging available
• Wholesale and mixed-model evaluation orders accepted

Recommended Applications

These wafer-handling tweezers may be evaluated for:

• Silicon wafer handling
• Compound-semiconductor wafers
• Semiconductor dies and chips
• Glass and ceramic substrates
• MEMS components
• Sensors and microelectronic parts
• LED and optoelectronic components
• Laboratory inspection and positioning
• Semiconductor research and development
• Controlled assembly and rework

Application suitability must be confirmed for the exact tool model and customer process.

Product Specifications

Selecting the Correct Wafer Tweezer

Before choosing a model, define the following requirements:

Wafer Diameter

Select a tweezer with support geometry evaluated for the intended wafer size. Compatibility with one wafer diameter does not automatically establish compatibility with larger or smaller wafers.

Wafer Thickness

Confirm that the closing clearance and paddle geometry suit the wafer or substrate thickness without applying excessive edge pressure.

Permitted Contact Zone

Identify whether the tool may contact the wafer edge, bevel, backside or another controlled area. Avoid direct contact with active surfaces unless the process specifically permits it.

Paddle Geometry

A flat paddle distributes contact differently from a narrow finger or precision point. Select the working geometry according to the required support, visibility and access.

Spring Tension

Closing force should be strong enough to provide control without creating unnecessary stress on the wafer edge or delicate substrate.

Process Environment

Review cleanliness requirements, ESD controls, chemical exposure, operating temperature, cleaning procedures and packaging before approving the model.

Quality-Control Inspection

Depending on the approved specification, production inspection can include:

• Tip and paddle alignment
• Closing contact pattern
• Paddle dimensions
• Edge and surface condition
• Spring tension
• Overall length and weight
• Surface-finish consistency
• Logo and model identification
• Packaging verification
• Comparison with the approved reference sample
• Final visual and functional inspection

Measured values and acceptance tolerances should be agreed upon before bulk production.

ESD and Cleanroom Qualification

Use in semiconductor or electronics applications does not automatically make a tool ESD-safe or cleanroom-compatible.

An ESD claim requires an appropriate test method and result for the exact model. Cleanroom suitability depends on the tool’s materials, construction, surface condition, cleaning procedure, packaging and the buyer’s qualification requirements.

Similarly, terms such as “anti-magnetic,” “chemical-resistant” and “non-marring” should only be applied when supported by suitable material information or application-specific testing.

OEM and Private-Label Manufacturing

TWEEZER WORLD® supplies semiconductor and precision-handling tweezers for distributors, technical-tool brands, laboratories and industrial buyers.

Available project options include:

• Laser-engraved company logo
• Custom model number or distributor SKU
• Satin, matte, mirror or sandblasted finish
• Custom paddle or contact geometry
• Controlled spring-tension classification
• Individual protective sleeves
• Technical product cards
• Barcode and private-label packaging
• Mixed-model evaluation sets
• Batch-inspection documentation
• QR-linked technical records

All customization is subject to technical review, sampling and manufacturing feasibility.

Sample Approval Process

1. Provide the wafer or substrate dimensions.
2. Define the permitted contact area.
3. Confirm material, geometry, tension and environmental requirements.
4. Select one or more evaluation models.
5. Test the samples in the intended handling process.
6. Approve the final specification and reference sample.
7. Confirm branding, packaging and inspection requirements.
8. Begin wholesale or OEM production.

Order Semiconductor Wafer Handling Tweezers

Contact TWEEEEZER WORLD® for individual samples, mixed evaluation sets, wholesale pricing or OEM manufacturing.

When requesting a quotation, please provide:

• Required model or tip geometry
• Wafer diameter and thickness
• Permitted contact zone
• Required material
• ESD or magnetic requirements
• Cleaning or chemical exposure
• Required quantity
• Logo and packaging requirements
• Destination country

Request Samples or a Quotation

WhatsApp: +92-321-6194723

Related Precision Tools

• Semiconductor Micro Handling Tweezers
• Anti-Static and ESD Tweezers
• Electronics Repair Tweezers
• Semiconductor Tweezers for European Distributors
• Technical Distributor Evaluation Pack
• OEM and Private-Label Tweezer Manufacturing

Frequently Asked Questions

What are semiconductor wafer handling tweezers?

They are precision hand tools designed to support, position or transfer wafers and related substrates through a controlled contact area. Common designs include flat paddles and bottom-paddle configurations with a smaller upper contact.

Which tweezer is best for handling silicon wafers?

The correct model depends on wafer diameter, thickness, permitted contact zone, paddle dimensions, spring tension and process conditions. There is no single model suitable for every wafer-handling operation.

Can one tweezer handle several wafer sizes?

Only when the tool’s dimensions and support geometry have been evaluated for every stated size. Compatibility should be published model by model.

Are these tweezers ESD-safe?

Only models with suitable model-specific test evidence should be described as ESD-safe. Stainless steel, ceramic construction or use in electronics does not establish ESD performance by itself.

Are ceramic tips non-marring?

Not automatically. Marking risk depends on the ceramic composition, tip condition, contact force and substrate surface. Test the exact model on representative material.

Can you manufacture custom wafer tweezers?

Yes. TWEEZER WORLD® can review custom geometry, dimensions, tension, finish, identification and packaging requirements. Custom production begins after technical review and sample approval.

Do you provide private-label packaging?

Yes. Available options include buyer logos, model numbers, barcodes, protective sleeves, technical cards, pouches, cases and custom retail packaging.
