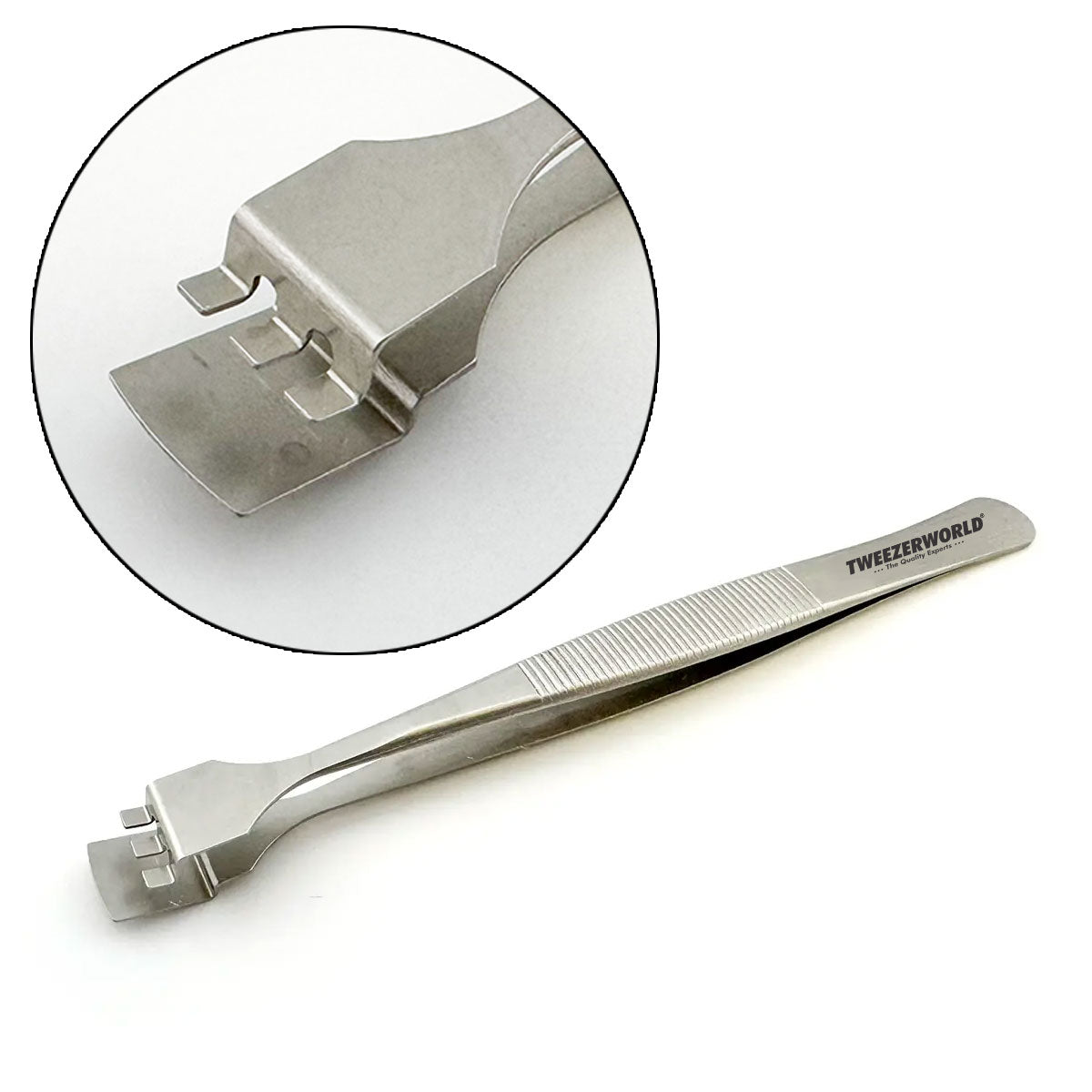

Semiconductor wafer handling tweezers with broad support paddle and three upper contact tabs

Triple-Tab Wafer Handling Tweezers | OEM Supplier

Semiconductor Wafer Handling Tweezers – Triple-Tab Paddle Tip TWEEZER WORLD® Triple-Tab Semiconductor Wafer Handling Tweezers feature a...
SKU: TW-SHT03
Availability: In Stock
Product Type: Semiconductor Wafer Handling Tweezers
$11.50
$11.50
Please hurry! Only 2500 left in stock
Subtotal: $11.50
10 customers are viewing this product
Semiconductor wafer handling tweezers with broad support paddle and three upper contact tabs

Triple-Tab Wafer Handling Tweezers | OEM Supplier

$11.50

Triple-Tab Wafer Handling Tweezers | OEM Supplier

$11.50

Semiconductor Wafer Handling Tweezers – Triple-Tab Paddle Tip

TWEEZER WORLD® Triple-Tab Semiconductor Wafer Handling Tweezers feature a broad lower support paddle and three separated upper contact tabs. This asymmetric contact arrangement is intended for controlled manual support, positioning and transfer of approved wafers, substrates and delicate technical components.

Compared with conventional pointed tweezers, the lower paddle provides a wider support area. The three upper tabs create separated closing-contact points that may help stabilize a round or flat component during careful handling. The exact model must be evaluated according to wafer diameter, substrate thickness, permitted contact area, closing force and process environment.

Suitable for evaluation by semiconductor laboratories, microelectronics manufacturers, research facilities, inspection teams, universities and precision-tool distributors.

Request a sample, wholesale quotation or OEM review

Triple-Tab Wafer-Handling Geometry

The product image shows a straight spring tweezer with a wide rectangular lower paddle and three smaller upper tabs arranged across the opposing jaw. A stepped transition connects the working end to the main body. The handle includes a ridged finger-grip section for controlled compression.

This geometry separates the supporting surface from the upper closing contacts. It may be considered where a buyer wants broader support beneath a component while limiting the number and position of upper contact areas. Final performance depends on tab spacing, paddle flatness, alignment, surface condition, spring force and operator technique.

Product Features

  • Broad lower paddle for supporting an approved wafer-edge or substrate-contact zone
  • Three separated upper tabs for distributed closing contact
  • Stepped working-end design for component access and visibility
  • Straight spring-tweezer body for manual opening and closing
  • Ridged finger grip for controlled handling
  • Silver satin/matte appearance shown in the product image
  • Working-end alignment and contact pattern available for inspection
  • Suitable for individual samples, wholesale supply and OEM development
  • Private-label logo, SKU, technical card and packaging options

Potential Applications

This triple-tab paddle tweezer may be evaluated for:

  • Manual silicon-wafer handling
  • Compound-semiconductor substrates
  • Glass and ceramic substrates
  • Wafer coupons and test pieces
  • Semiconductor dies and chips
  • MEMS and sensor components
  • LED and optoelectronic components
  • Microscope inspection and laboratory positioning
  • Research, prototyping and controlled assembly
  • Technical distributor evaluation sets

Application suitability is model- and process-specific. Test the exact finished tweezer on representative or non-critical material before approval for production handling.

Product Specifications

Product name Semiconductor Wafer Handling Tweezers – Triple-Tab Paddle Tip
 SKU TW-SHT03
Product type Semiconductor wafer handling tweezers
Tip geometry Broad lower support paddle with three separated upper contact tabs
Handle design Straight spring body with ridged finger grip
Base material Stainless-steel appearance shown; alloy grade not verified
Tip/contact material Exposed metal appearance shown; composition not verified
Overall length Not verified — measure the production sample
Product weight Not verified — weigh the production sample
Lower-paddle dimensions Not verified — record width, depth and thickness
Upper-tab dimensions Not verified — record width, depth, thickness and spacing
Supported wafer diameter Not specified — validate by model and process
Supported substrate thickness Not specified — verify closing clearance and contact pattern
Surface appearance Silver satin/matte appearance shown
Spring tension / closing force Not verified — measure using an agreed method
Magnetic characteristic Not specified; no model-specific result published
ESD test status Not tested / no model-specific electrical result published
Cleanroom qualification Not established; customer qualification required
Batch inspection Available according to the approved specification and inspection plan
OEM/private label Logo, model marking, packaging and documentation options available

How the Triple-Tab Paddle Design Works

  1. Position the paddle: place the broad lower jaw beneath the approved wafer edge, backside or other permitted contact area.
  2. Close gradually: compress the ridged handle until the three upper tabs approach the defined upper contact zone.
  3. Stabilize the part: the separated tabs provide multiple upper contact points while the paddle supports the component from below.
  4. Transfer carefully: use only the minimum closing force required to maintain control.
  5. Release smoothly: reduce handle pressure after positioning the component in its approved carrier, tray or fixture.

The model should be rejected or adjusted if the tabs contact unevenly, cross the permitted zone, leave marks, produce particles or apply excessive force.

Dual-Tab vs Triple-Tab Wafer Tweezers

Selection point Dual-tab model Triple-tab model
Upper contacts Two separated tabs Three separated tabs
Contact distribution Two defined upper contact areas Three defined upper contact areas across a wider pattern
Typical evaluation goal Limited upper contact with broad lower support Additional upper stabilization with broad lower support
Approval requirement Validate tab position, contact pattern, force and marking on the intended component

Neither configuration is automatically better. Choose the design that matches the permitted contact zone, component geometry and required stability.

How to Select and Approve This Model

1. Define the handled component

Record the wafer or substrate material, diameter, thickness, edge profile, surface condition and fragility. Identify whether the part is a full wafer, coupon, die, glass substrate, ceramic plate or another component.

2. Mark every permitted contact zone

State whether the lower paddle may contact the edge, bevel, backside or another area. Define the approved locations for all three upper tabs. Avoid contact with active, patterned or coated surfaces unless the process specifically permits it.

3. Specify measurable geometry

Record paddle width, depth, thickness and edge profile. For the upper contacts, define the width, depth, thickness, spacing, parallelism and allowable offset. Do not rely only on subjective descriptions such as “wide” or “precision.”

4. Control closing force

Measure closing force at a defined opening and handle location. Excessive force may increase edge stress, while insufficient force may allow the component to rotate or slip.

5. Qualify the operating environment

Confirm ESD controls, cleaning agents, temperature, humidity, glove use, cleanroom procedure and packaging. Approve technical claims only when evidence applies to the exact finished model.

Quality-Control and Sample Approval

TWEEZER WORLD® can prepare evaluation samples and an agreed inspection plan. Relevant checkpoints may include:

  • Lower-paddle width, depth, thickness, flatness and edge condition
  • Upper-tab width, depth, thickness and spacing
  • Vertical and lateral alignment of all working surfaces
  • First-contact position and full closing pattern
  • Burrs, sharp edges, scratches and visible surface defects
  • Closing force at a defined opening and grip position
  • Return action after repeated compression
  • Overall length, individual weight and handle condition
  • Logo, SKU, label and packaging accuracy
  • Comparison with the approved reference sample

For repeat orders, retain the approved sample, drawing revision and inspection record so production batches are checked against the correct reference.

Technical Claim Controls

The image establishes visible geometry but does not establish alloy grade or technical performance. Do not describe this product as ESD-safe, anti-magnetic, anti-acid, chemical-resistant, cleanroom-compatible or non-marring without model-specific evidence.

  • ESD performance: requires a suitable method, conditions and result for the complete finished tool.
  • Magnetic behavior: requires verified material information or a measured result.
  • Chemical resistance: depends on the chemical, concentration, temperature and exposure time.
  • Cleanroom suitability: depends on material, surface, cleaning, particle, packaging and customer requirements.
  • Non-marring performance: must be evaluated on representative surfaces using the intended closing force.

OEM and Private-Label Manufacturing

TWEEZER WORLD® supplies precision tweezers to semiconductor distributors, laboratory suppliers, technical-tool brands and industrial buyers. Project-dependent options include:

  • Laser-engraved company logo or brand name
  • Custom model number, distributor SKU or batch code
  • Approved adjustments to paddle and upper-tab geometry
  • Controlled spring-tension classification
  • Satin, matte, mirror or agreed surface finish
  • Individual sleeves, tip protection, pouches or cases
  • Technical cards with measured specifications
  • Barcodes, multilingual labels and private-label packaging
  • Mixed semiconductor-tweezer evaluation sets
  • Batch-inspection records and QR-linked technical documentation

Custom production is subject to technical review, manufacturing feasibility and approval of a physical sample.

Wholesale and OEM Ordering Process

  1. Send the component dimensions, material and intended application.
  2. Define permitted contact areas and handling restrictions.
  3. Confirm geometry, material, tension and required test status.
  4. Request an individual sample or mixed evaluation set.
  5. Test the sample using the buyer’s controlled procedure.
  6. Approve the reference sample, specifications and inspection criteria.
  7. Confirm quantity, branding, packaging and delivery requirements.
  8. Begin production with the agreed batch-inspection plan.

Contact TWEEZER WORLD® for samples and factory-direct pricing
WhatsApp: +92-321-6194723

Care and Storage

  • Inspect all three tabs, the lower paddle and the closing pattern before use.
  • Use only cleaning agents confirmed as compatible with the approved material.
  • Do not scrape the contact surfaces with abrasive tools.
  • Dry the tweezer completely before storage.
  • Protect the working end from drops, bending and contact with other instruments.
  • Store it in an individual sleeve, case or controlled tool tray.
  • Remove the tool from service if a tab becomes bent, burred or misaligned.

Related Semiconductor Products and Resources

Frequently Asked Questions

What is a triple-tab wafer-handling tweezer?

It is a mechanical tweezer with a broad lower support paddle and three separated upper contact tabs. The geometry provides a supporting surface beneath the component and multiple defined contacts above it.

What is the difference between dual-tab and triple-tab wafer tweezers?

The dual-tab model has two upper contacts, while this model has three. The correct choice depends on component geometry, permitted contact zones, required stability and test results.

Which wafer size can this model handle?

No compatible diameter should be published until the production sample is measured and evaluated. Verify paddle size, tab pattern, clearance and closing force using the intended wafer.

Can it handle silicon or compound-semiconductor wafers?

It may be evaluated for these substrates, but suitability depends on the component, contact area, force, surface condition and process requirements.

Is this tweezer ESD-safe?

No model-specific electrical result is currently stated. Use an ESD-safe claim only after appropriate testing of the exact finished model.

Is it anti-magnetic or chemical-resistant?

These properties cannot be established from appearance. Verify the material and obtain suitable evidence before publishing either claim.

Is this product cleanroom-compatible?

Cleanroom suitability depends on material, surface finish, construction, cleaning, packaging, particle requirements and the customer’s qualification procedure.

Can the triple-tab geometry be customized?

Geometry changes can be reviewed for OEM orders. Provide a drawing or sample defining paddle dimensions, tab dimensions, spacing, tolerances, contact pattern and closing-force target.

Can I add my company logo and packaging?

Yes. Available options may include laser branding, custom SKU identification, technical cards, barcodes, sleeves, pouches, cases and private-label boxes.

Should a sample be approved before production?

Yes. Test the sample with the intended wafer or a safe representative component, then approve geometry, force, finish, marking, packaging and inspection criteria.
