Semiconductor Wafer Handling Tweezers – Eight-Tab Paddle Tip

TWEEZER WORLD® Eight-Tab Semiconductor Wafer Handling Tweezers combine eight separated upper contact tabs with a broad solid lower support paddle. This asymmetric working-end geometry is intended for controlled manual support, positioning and transfer of approved wafers, substrates and delicate technical components.

The lower paddle provides a continuous supporting surface, while eight upper tabs form separated closing-contact locations across the opposing jaw. This creates a wider multi-point contact pattern than the earlier dual-tab, triple-tab, four-tab and five-tab models. Select the tool according to the actual component geometry, permitted contact zone, substrate thickness, closing force and process environment.

This model is available for evaluation by semiconductor laboratories, microelectronics manufacturers, research facilities, inspection teams, universities and precision-tool distributors.

Request a sample, wholesale quotation or OEM review

Eight Upper Contact Tabs With a Solid Support Paddle

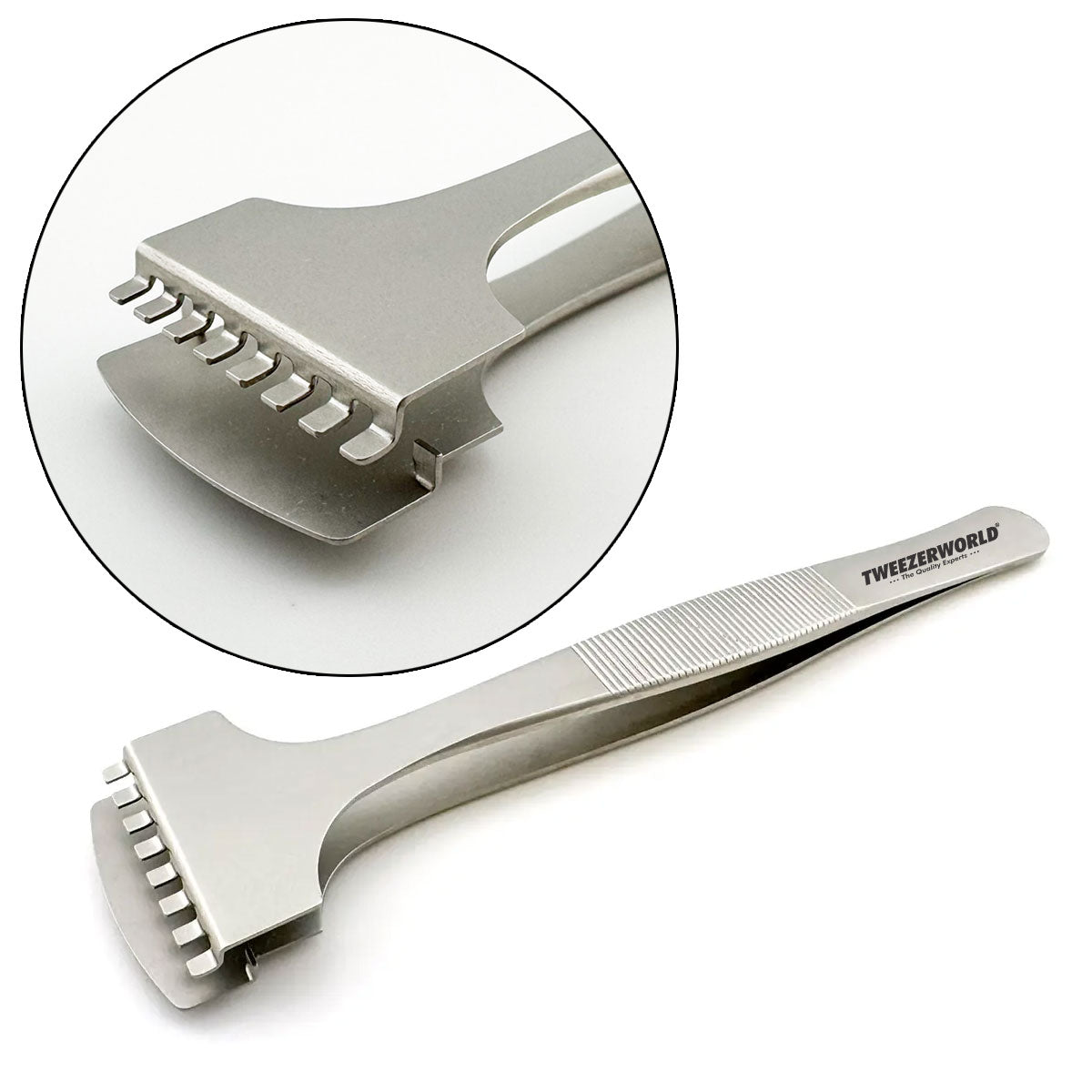

The supplied product image shows eight distinct upper tabs arranged across one jaw and a broad, uninterrupted lower paddle on the opposing jaw. The working ends widen through a stepped transition from the handle arms, while a ridged finger-grip section supports controlled manual compression of the straight spring body.

The eight-tab layout provides eight defined upper contact locations across the paddle width. It may be evaluated when a broad, distributed contact pattern is required. The higher tab count does not by itself prove better stability, lower stress, improved grip or reduced marking. Those outcomes depend on alignment, applied force, surface condition and component-level testing.

Product Features

• Eight separated upper contact tabs
• Broad solid lower support paddle
• Wide multi-point upper contact pattern
• Stepped working-end geometry for controlled positioning
• Straight spring-tweezer body
• Ridged finger grip for manual control
• Silver satin/matte appearance shown in the product image
• Working-end alignment and contact pattern available for inspection
• Sample, wholesale and OEM development options

Potential Applications

• Manual silicon-wafer handling
• Compound-semiconductor substrates
• Glass and ceramic substrates
• Wafer coupons, dies and test pieces
• MEMS and sensor components
• LED and optoelectronic components
• Microscope inspection and laboratory positioning
• Research, prototyping and controlled assembly
• Technical distributor evaluation sets

Application suitability is model- and process-specific. Evaluate the finished tool with representative or non-critical components before approving it for production handling.

Product Specifications

How the Eight-Tab Paddle Design Works

1. Position the lower paddle: place it beneath the approved wafer edge, backside or permitted support region.
2. Align all eight tabs: confirm that every upper contact corresponds with a permitted area.
3. Close gradually: compress the handle until the tabs approach and contact the component evenly.
4. Stabilize the part: maintain only the minimum force required to prevent unintended movement.
5. Transfer and release: position the component in its approved tray, carrier or fixture and release smoothly.

Remove the tool from service if one tab reaches the component before the others, the paddle is distorted, the contact pattern falls outside the permitted zone or the tool marks the representative component.

Contact-Tab Model Comparison

More tabs do not automatically mean better performance. Select the geometry that matches the component, permitted contact zones, required stability and qualification results.

Selection and Sample Approval

Define the component

Record its material, diameter, thickness, edge profile, surface condition and fragility. State whether it is a full wafer, coupon, die, glass plate, ceramic substrate or another component.

Define permitted contact zones

Mark the approved lower-paddle support region and the permitted location for each of the eight upper tabs. Avoid active, coated or patterned surfaces unless the controlled process permits contact.

Specify measurable geometry

Record paddle width, depth, thickness, flatness and edge profile. Define each tab’s width, depth, thickness, spacing, parallelism and allowable offset.

Control closing force

Measure force at a defined opening and handle location. Excessive force may increase edge stress, while insufficient force may allow movement or rotation.

Qualify the operating environment

Confirm ESD controls, cleaning agents, temperature, glove use, cleanroom procedure and packaging. Approve technical claims only when evidence applies to the exact finished model.

Quality-Control Inspection

• Lower-paddle dimensions, flatness and edge condition
• Dimensions and spacing of all eight upper tabs
• Vertical and lateral alignment of working surfaces
• First-contact position and complete closing pattern
• Burrs, sharp edges, scratches and surface defects
• Closing force at a defined opening and grip position
• Return action after repeated compression
• Overall length, weight, logo, SKU and packaging
• Comparison with the approved reference sample

Technical Claim Controls

The image confirms visible geometry but does not establish alloy grade or technical performance. Do not describe this tool as ESD-safe, anti-magnetic, chemical-resistant, anti-acid, cleanroom-compatible or non-marring without evidence for the exact model.

• ESD performance: requires an appropriate method and result for the complete finished tool.
• Magnetic behavior: requires verified alloy information or a measured result.
• Chemical resistance: depends on the chemical, concentration, temperature and exposure time.
• Cleanroom suitability: depends on material, construction, cleaning, packaging and particle requirements.
• Non-marring performance: requires testing on representative surfaces using the intended force.

OEM and Private-Label Manufacturing

TWEEZER WORLD® supplies semiconductor distributors, laboratory suppliers, technical-tool brands and industrial buyers. Project-dependent options include:

• Laser-engraved logo, brand name or model number
• Custom distributor SKU or batch identification
• Approved changes to paddle or eight-tab geometry
• Controlled spring-tension classification
• Satin, matte, mirror or agreed surface finish
• Individual sleeves, tip protection, pouches or cases
• Technical cards with measured specifications
• Barcodes, multilingual labels and private-label packaging
• Mixed semiconductor-tweezer evaluation sets
• Batch-inspection records and QR-linked technical documentation

Customization is subject to technical review, manufacturing feasibility and approval of a physical sample.

Wholesale and OEM Ordering Process

1. Send the component dimensions, material and intended application.
2. Define every permitted upper and lower contact area.
3. Confirm geometry, material, tension and test requirements.
4. Request an individual sample or mixed evaluation set.
5. Test the sample using the buyer’s controlled procedure.
6. Approve specifications, branding, packaging and inspection criteria.
7. Begin production under the agreed batch-inspection plan.

Contact TWEEZER WORLD® for samples and factory-direct pricing
WhatsApp: +92-321-6194723

Care and Storage

• Inspect all eight tabs, the lower paddle and closing alignment before use.
• Use only cleaning agents confirmed as compatible with the approved material.
• Dry the tool completely before storage.
• Protect the working end from drops, bending and contact with other instruments.
• Store it in an individual sleeve, case or controlled tool tray.
• Remove it from service if any tab becomes bent, burred or misaligned.

Related Semiconductor Products and Resources

• Semiconductor Micro Handling Tweezers
• Precision Paddle-Tip Wafer Handling Tweezers
• Dual-Tab Paddle Wafer Tweezers
• Triple-Tab Paddle Wafer Tweezers
• Four-Tab Paddle Wafer Tweezers
• Five-Tab Paddle Wafer Tweezers
• ESD and Anti-Static Tweezers
• Semiconductor Tweezers for European Distributors
• Technical Distributor Evaluation Pack
• OEM and Private-Label Manufacturing
• TWEEZER WORLD® OEM Process

Frequently Asked Questions

How many upper contact tabs does this model have?

It has eight separated upper contact tabs positioned above a broad solid lower support paddle.

How is it different from the four-tab model?

This model doubles the upper contact count from four to eight, creating a broader multi-point contact pattern. It must still be evaluated for the intended component and permitted contact zones.

Does eight-tab contact guarantee better grip?

No. Performance depends on tab alignment, component geometry, permitted contact area, closing force, surface condition and operator technique.

Which wafer size can it handle?

Do not publish a compatible diameter until the sample has been measured and evaluated for paddle dimensions, tab pattern, clearance and force.

Is it ESD-safe or cleanroom-compatible?

Not automatically. Both claims require model-specific materials, test evidence and customer qualification.

Can the eight-tab geometry be customized?

Yes, subject to manufacturing review. Provide a drawing defining paddle and tab dimensions, spacing, tolerances, contact pattern and closing-force requirements.

Can I order private-label branding?

Yes. Options may include laser branding, custom SKU identification, barcodes, technical cards and private-label packaging.
